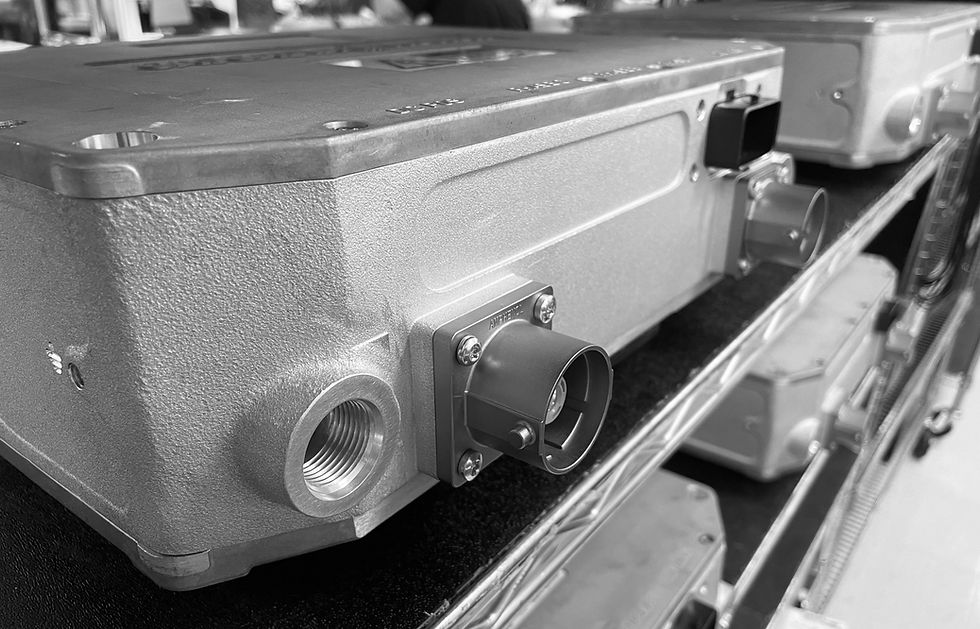

CM350DZ INVERTER
Our CM350DZ inverter delivers up to 440 kW of power with a peak current of 720 Arms — all in a compact 17.4 kg package. Designed for high-voltage systems up to 850 V, it features pluggable connectors, HVIL support, and a wide 9–32 V low-voltage range. Built for serious performance.
In addition to standard motor control, the CM350DZ can be used for DC Voltage Regulation and as an AC Inverter for grid applications.
Specification | CM350DZ | Units |
|---|---|---|
Maximum DC Voltage - Non-operating | 900 | VDC |
Continuous Output Current | 500 | Arms |
Maximum Output Current | 720 | Arms |
Maximum Output Power (electrical) | 440 | kW |
Weight | 17.4 | kg |
Low Voltage Power | 9 to 32 | VDC |
PWM Frequency | 6 to 16 | kHz |
DC Voltage - Operating | 200-850 | VDC |
Peak is defined as a maximum of 30s. Voltage and coolant temperature will impact current output capacity.
Click Image to Download CAD File
Contact Cascadia Motion Sales for CAD models for configurations not shown.
CM350DZ Inverter
