400V (DX) and 800V (DZ) Models Available

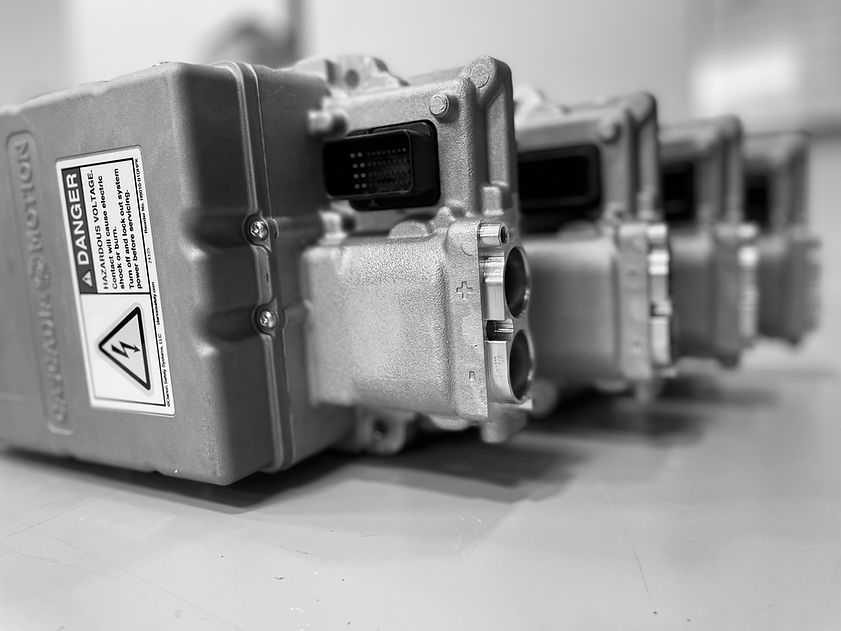

CM200 INVERTER
Our CM200 inverter delivers up to 225 kW of power with a peak current of 740 Arms — all in a compact 6.8 kg package. Designed for high-voltage systems up to 850 V, it features pluggable connectors, HVIL support, and a wide 9–32 V low-voltage range. Offered in 400V and 800V platforms.
Specification | DX | DZ | Units |
|---|---|---|---|
DC Overvoltage Trip | 500 | 860 | VDC |
Maximum DC Voltage – Non-operating | 500 | 900 | VDC |
Continuous Output Current | 300 | 200 | Arms |
Maximum Output Current | 740 | 400 | Arms |
Maximum Output Power (electrical) | 225 | 225 | kW |
Weight | 6.75 | 6.75 | kg |
Low Voltage Power | 9 to 32 | 9 to 32 | VDC |
PWM Frequency | 6 to 16 | 6 to 16 | kHz |
DC Voltage – Operating | 200–480 | 200–840 | VDC |
Peak is defined as a maximum of 30s. Voltage and coolant temperature will impact current output capacity.
Click Image to Download CAD File
Contact Cascadia Motion Sales for CAD models of configurations not shown.
CM200 Inverter
